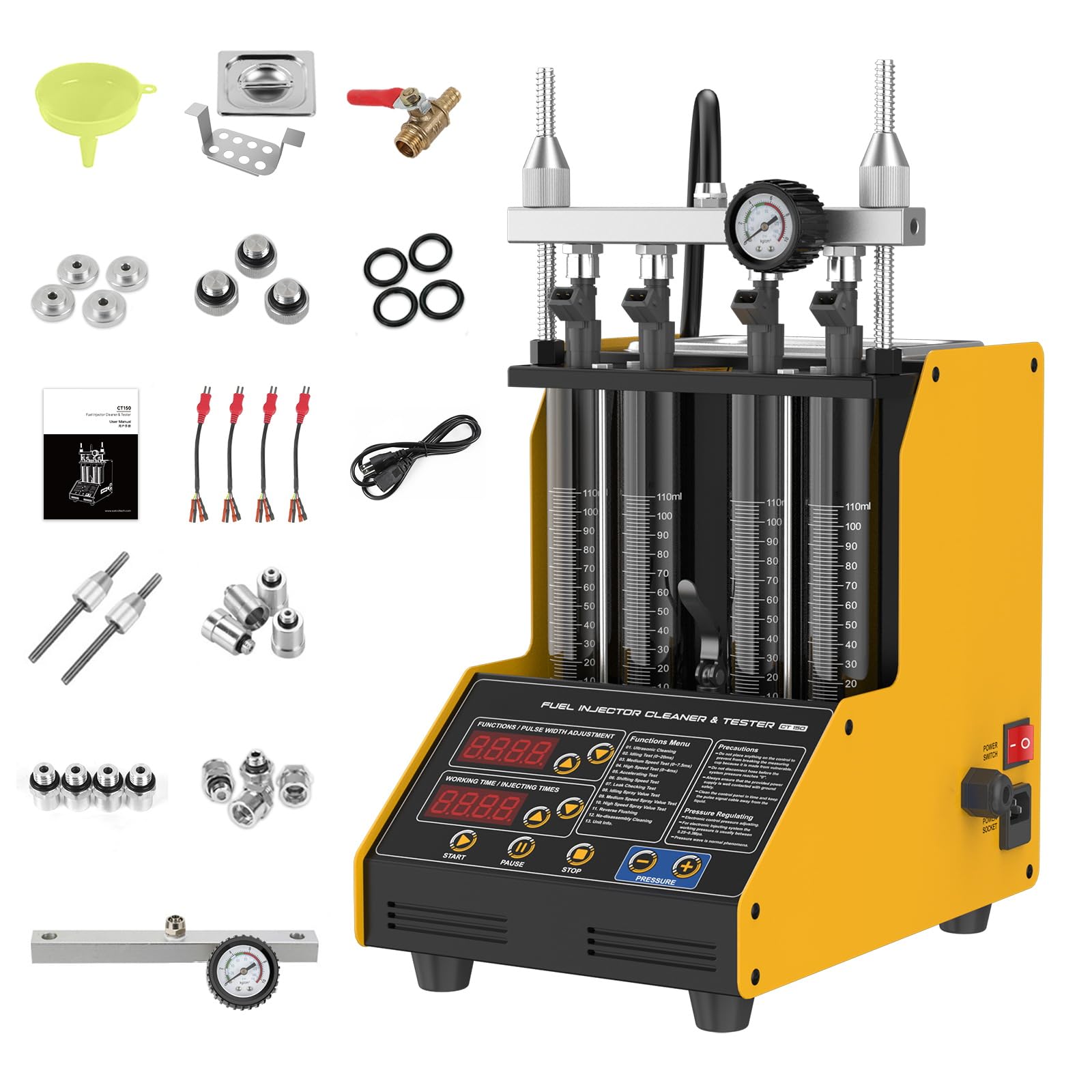

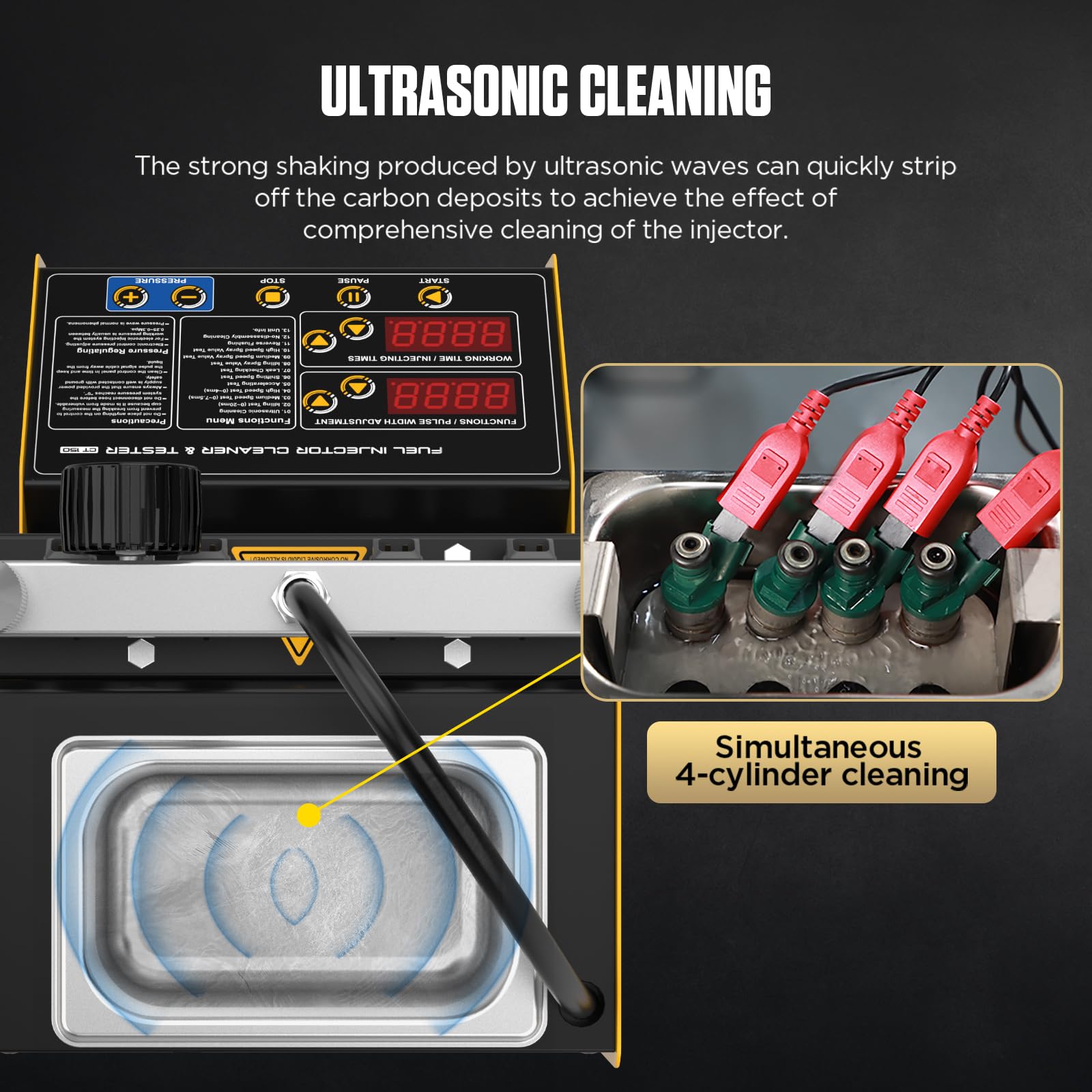

CT150 Fuel Injector Tester & Cleaner is an integrated four-cylinder fuel injector machine. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control technology into one, which can simulate various working conditions of the engine and can clean and test the injectors of automobiles and motorcycles. It has a three-dimensional and nice appearance, which is both drop-resistant and shockproof. It has undergone years of technological and design innovation in which it will solve your fuel injector problems with stable performance and convenient operation. KINDLY NOTICE:How to choose test fluid?The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.How to choose cleaning fluid?Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not good enough. Functions: Ultrasonic Cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.Medium Speed Test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector.Shift Speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector.Leakage Test: Test the sealing condition of the fuel injector.Idle Dpeed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.Medium Speed Sprayability Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.High-Speed Sprayability Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.Reverse Flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).No-Disassembly Cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters. SMART CONTROL PANEL CT150 Fuel Injector Cleaner Tester design with HD color display, makes the operation clear and easy to read. ULTRASONIC CLEANING The strong shaking produced by ultrasonic waves can quickly stripoff the carbon deposits to achieve the effect ofcomprehensive cleaning of the injector. 4 CYLINDER DESIGN CT150 Ultrasonic Injector Cleaner Tester can clean and test up to four fuel injectors simultaneously providing efficient service.lt allows for easy observation and accurate evaluation of the injectors' condition through comparison. DETAIL DISPLAY TESTING FLUID LEVEL GAUGE For observing the current test fluid capacityPRESSURE GAUGE For Observable work pressureGLASS MEASURING CYLINDER For Visual testing statusCLEANING FLUID DRAIN For recycling used cleaning fluid SPECIFICATIONS Power supply: AC220V/AC110V±10%Frequency: 50HZ±0.5Humidity: ＜85%Environment Temperature: 0℃～＋40℃Magnetic Field: ＜400Ａ/mSpark and fire are prohibited.Main unit dimensions:300x220x320mmPackage weight:10kgPower of Ultrasonic Cleaning:70WFrequency of Ultrasonic Cleaning:28KHZ+0.5KHZ PACKING LIST 1pcs * CT150 Fuel Injector Cleaner Tester Main Unit;1pcs * Oil Separator; / 1pcs * Funnel;2pcs * Pulse Signal Cable;1pcs * Cleaning Fluid Drain Valve;2pcs * Fixing Bolt;4pcs * 13.5mm Cleaning Connector; / 4pcs 14mm Cleaning Connector; / 4pcs 15.8mm Connector; / 4pcs 9.8-11mm Connector;4pcs * 17mm Cleaning Connector; / 4pcs * Washer;3pcs * Plug; / 4pcs * Sealing Ring;1pcs * Ultrasonic Cleaning Cover; / 1pcs * Ultrasonic Cleaning Bracket;1pcs * Power Cable; / 1pcs * CT150 User Manual. OPERATION STEPS Ultrasonic Cleaning:Step 1: Pour in the detergent andplace the fuel injector inthe ultrasonic cleaner.Step 2: Connect the pulse signal wire &.select the ultrasonic cleaningfunction to start working.Fuel Injector Testing:Step 1: Pour in the test liquid, install theuel injector to the fuel distributorand fix it to the main unit by bolts.Step 2: Test if the fuelinjector iseaking or blocked underdifferent functions. How to Work ? Clean injector's outside with gasoline or cleaning liquid before open machinePutting injectors in ultrasonic bathtub after the outside of injector are free of dirt.Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.Fixed injectors on main machine.Testing injectors for resistance, shorts, and current draw.Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions. CT150 Fuel Injector Cleaner Tester CT160 Fuel Injector Cleaner Tester CT200 Fuel Injector Cleaner Tester CT400 Fuel Injector Cleaner Tester CT500 Fuel Injector Cleaner Tester Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 39 4.3 out of 5 stars 31 3.6 out of 5 stars 20 4.8 out of 5 stars 7 5.0 out of 5 stars 2 Price $319.00$319.00 $349.00$349.00 $554.99$554.99 $499.00$499.00 $750.00$750.00 Cylinders Design 4 Cylinders 4 Cylinders 6 Cylinders 6 Cylinders 6 Cylinders GDl, EFl, and FSl injectors no data no data no data ✓ ✓ Voltage Selection of injectors no data no data no data 12V, 70V, and 120V voltage options 12V, 70V, and 120V voltage options With 3 Different Pulse Signal Cables no data no data no data no data Compatible For Mercedes-Benz, BMW Exclusive Pulse Signal Cable.Universa Pulse Signal Cable. Functions 12 Functions Available 11 Functions Available 12 Functions Available 12 Functions Available 15 Functions Available Heating The Cleaning Fluid no data ✓ no data no data no data Cleaning Tank Capacity 1000ML 2000ML 1700ML 1800ML 2000ML Recovery Valve for Cleaning Fluid ✓ ✓ ✓ ✓ ✓ Level Gauge of Test Fluid ✓ ✓ ✓ ✓ ✓ Ultrasonic Cleaning ✓ ✓ ✓ ✓ ✓
